خط تولید مفتول با پوشش مس
خط تولید مفتول با پوشش مس جهت تولید سیم جوش CO ، سیم جوش زیر پودری .
RESPOOLING LINE FOR SUB-ARC WIRES MODEL: BM-RL2
Suitable for the precision layer winding of layer dia. Wires for SAW and FCAW wire on basket or coils
Programmable logic electronic equipment
Reversible automatic wire traverse
Pneumatic flange opening
Range of diameters of wire to be wound from 1.2 to 5.0 mm
Max. liner respooling speed :
Max weight on unwinding :
Total installed capacity:
25 m/s
1000 Kg
50 Kw
FEATURES AND PERFORMANCE
Material to be treated :
Welding wire and staple wires
T.S.: 100 Kg/mm² max
Carbon Content: 0.06 – 0.15%
Wires rang: from 0.8 to 1.6 mm
Working pulleys material: ceramic
Wire speed : 20 m/sec. Max

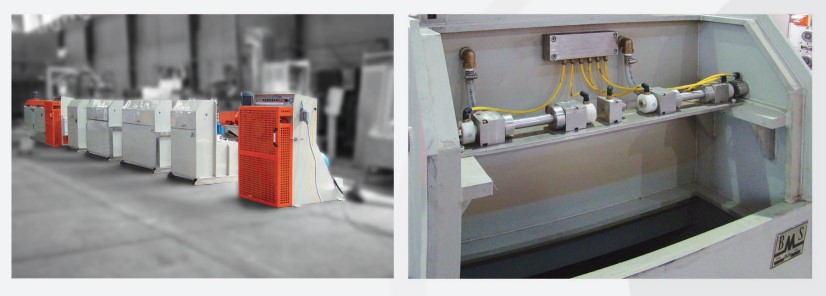

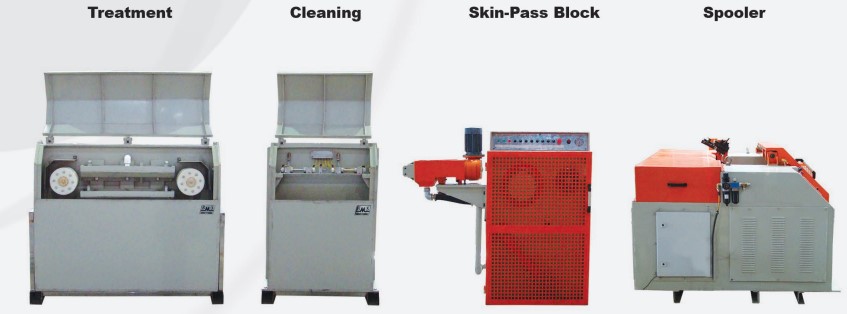

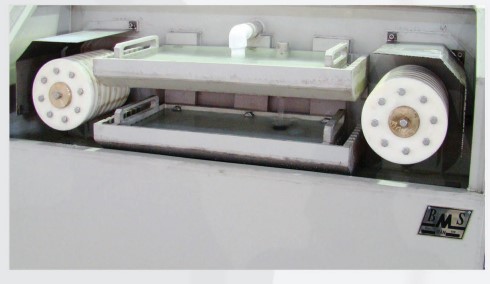

Cleaning and Coppering Production Line
SEMI-AUTOMATIC RESPOOLING LINE FOR CO WELDING WIRE MODEL : BM-RL1
Suitable for the precision layer winding of CO₂ welding wire onto plastic or metal spools
Progammable logic electronic equipment
Pneumatic hoist for reel loading /unloading
Reversible automatic wire traverse
Range of diameters of wire to be wound from 0.8 to 2.0 mm
Max. liner respooling speed: 30 m/s
Max сараcity of spools: 20 Kg
Max weight on unwinding : 800 Kg
Total installed capacity: 34 Kw
